Appeals Back-Office

Internal service to manage planning appeals in England

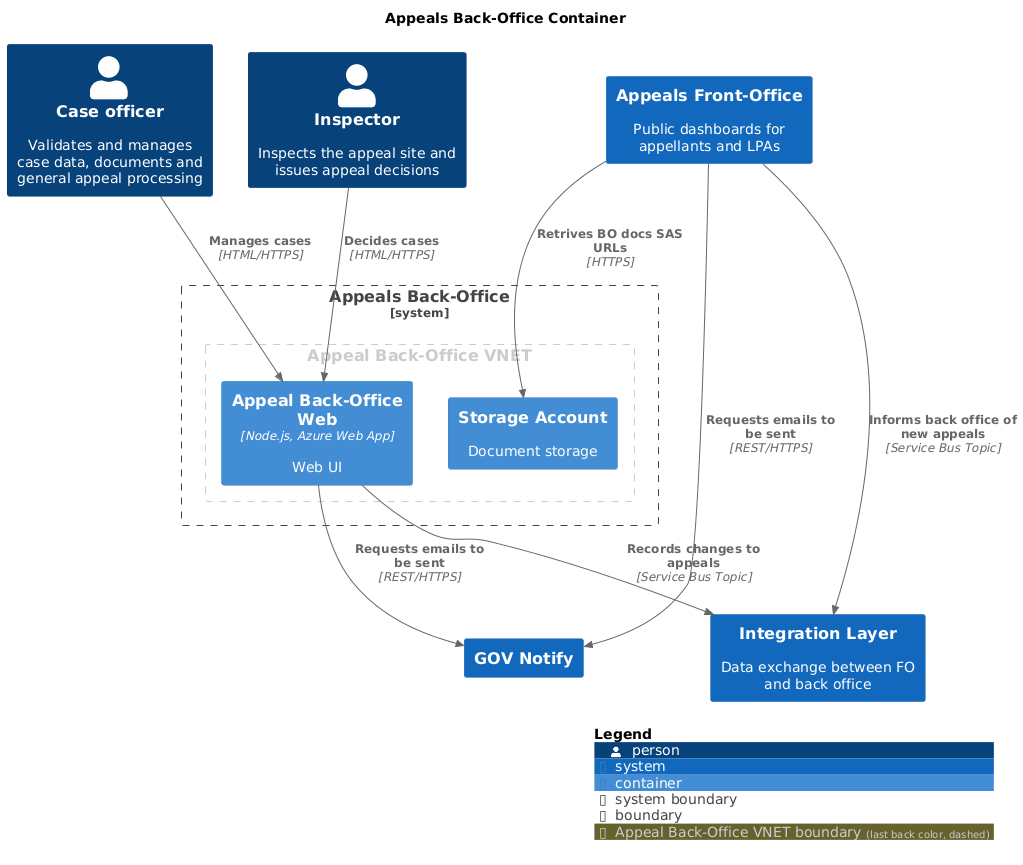

Appeals Back-Office ContainerAppeals Back-Office ContainerAppeals Back-Office[system]Appeal Back-Office VNETStorage Account Document storageAppeal Back-OfficeWeb[Node.js, Azure Web App] Web UICase officer Validates and managescase data, documents andgeneral appeal processingInspector Inspects the appeal site andissues appeal decisionsAppeals Front-Office Public dashboards forappellants and LPAsIntegration Layer Data exchange between FOand back officeGOV NotifyRetrives BO docs SASURLs[HTTPS]Requests emails tobe sent[REST/HTTPS]Requests emails tobe sent[REST/HTTPS]Records changes toappeals[Service Bus Topic]Manages cases[HTML/HTTPS]Decides cases[HTML/HTTPS]Informs back office ofnew appeals[Service Bus Topic]Legend ▯ person ▯ system ▯ container ▯ system boundary ▯ boundary ▯ Appeal Back-Office VNET boundary(last back color, dashed)
